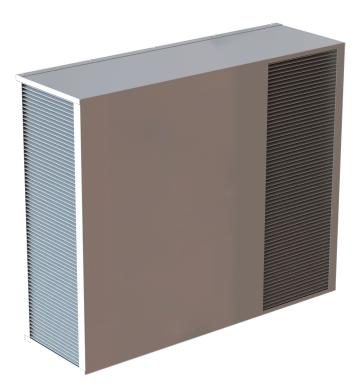

Heat Exchanger Recuperator

Cross- and counter-flow plate cores to 10,000 m³/h, conforming to European Ecodesign 2016 / 2018.

Key features

Cross-flow and counter-flow plate cores for air flows to 10,000 m³/h.
Aluminium, acrylic-protected aluminium or stainless steel, on a low pressure-drop plate profile.
Meets European Ecodesign 2016 and 2018 efficiency requirements.
Cross flow for ventilation and heat recovery; counter flow for cabinet-level cooling.

Sized by core rather than by part number. A is the face dimension, B the depth, C the diagonal on cross flow and the length on counter flow.

Cross flow

Model	A (mm)	B (mm)	C (45° mm)	Plate distance (mm)

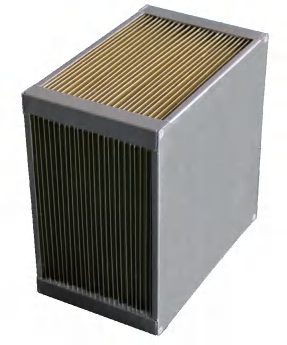

Counter flow

Model	A (mm)	B (mm)	C (mm)	Plate distance (mm)

Other sizes on request.

9 models · catalogue page 17

P/N	Model	Capacity	Supply	Dimensions (mm)	Notes
—	Cross flow 200	to 10,000 m³/h	—	200 × max.600 × 282	Plate 2.0 / 2.5 / 3.0 mm
—	Cross flow 300	to 10,000 m³/h	—	300 × max.800 × 424	Plate 2.0 / 2.5 / 3.0 / 4.0 mm
—	Cross flow 400	to 10,000 m³/h	—	400 × max.800 × 565	Plate 3.0 / 4.0 / 5.0 / 6.0 mm
—	Cross flow 600	to 10,000 m³/h	—	600 × max.1000 × 850	Plate 3.0 / 4.0 / 5.0 / 6.0 mm
—	Counter flow 300	to 10,000 m³/h	—	300 × 100–140 × 200–800	Plate 2.0 / 2.5 / 3.0 mm
—	Counter flow 400	to 10,000 m³/h	—	400 × 100–140 × 200–800	Plate 2.0 / 2.5 / 3.0 / 4.0 mm
—	Counter flow 460	to 10,000 m³/h	—	460 × 190 × 200–800	Plate 3.0 / 4.0 / 5.0 / 6.0 mm
—	Counter flow 500	to 10,000 m³/h	—	500 × 140 × 200–800	Plate 3.0 / 4.0 / 5.0 / 6.0 mm
—	Counter flow 600	to 10,000 m³/h	—	600 × 140 / 190 / 235 × 200–800	Plate 3.0 / 4.0 / 5.0 / 6.0 mm

Heat load, ambient range, enclosure size, supply and corrosion class. That is enough for a model number, a drawing and a price.
