Design features
- Low pressure-drop sheet profile
- Aluminium, acrylic-protected aluminium or stainless steel
- Cross flow for ventilation and heat recovery; counter flow for cabinet-level cooling
- Low installation and running costs, minimal maintenance
Fourteen product families and 134 released models, transcribed from the current catalogue. Filter by industry, family or power supply — or search a part number directly.

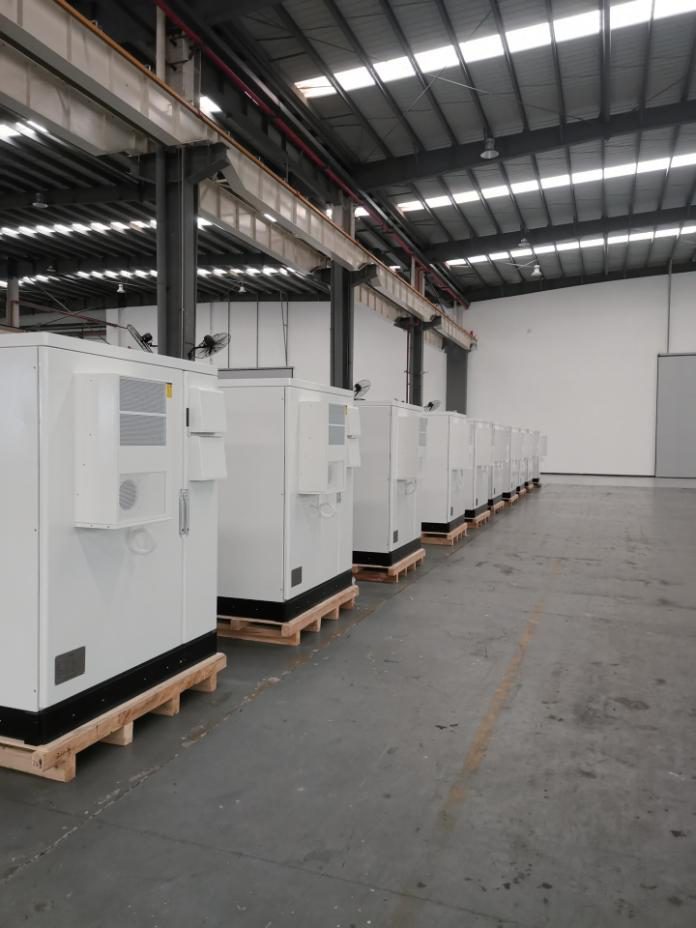

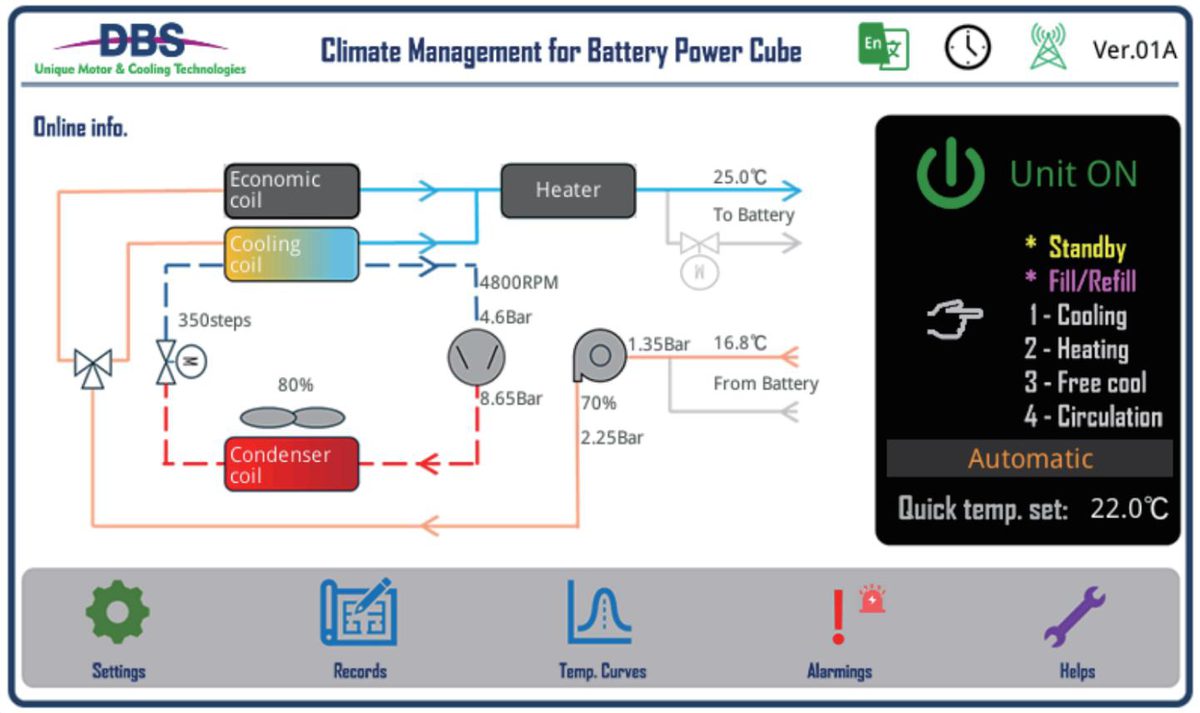

Coolant distribution unit for PCS, SST and AI racks — rejects heat straight to ambient air.
Pure 48 VDC platform with industry-leading SEER, built for hybrid-power sites in hot climates.

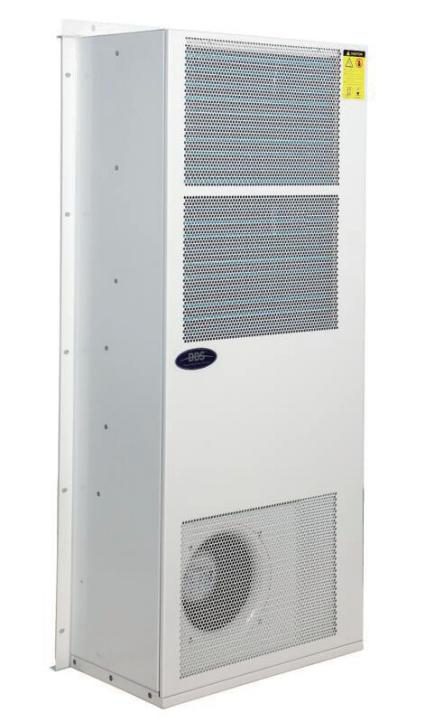

Inverter-driven 230 VAC rack cooling with humidity logic that stops cabinet-wall condensation.

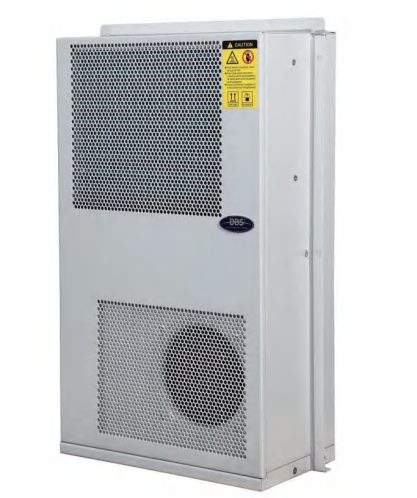

42–60 VDC monoblocks with auto stop/restart on out-of-range input and MODBUS-RTU control.
Closed-loop monoblocks with flange mounting for through-wall or cabinet-door installation.

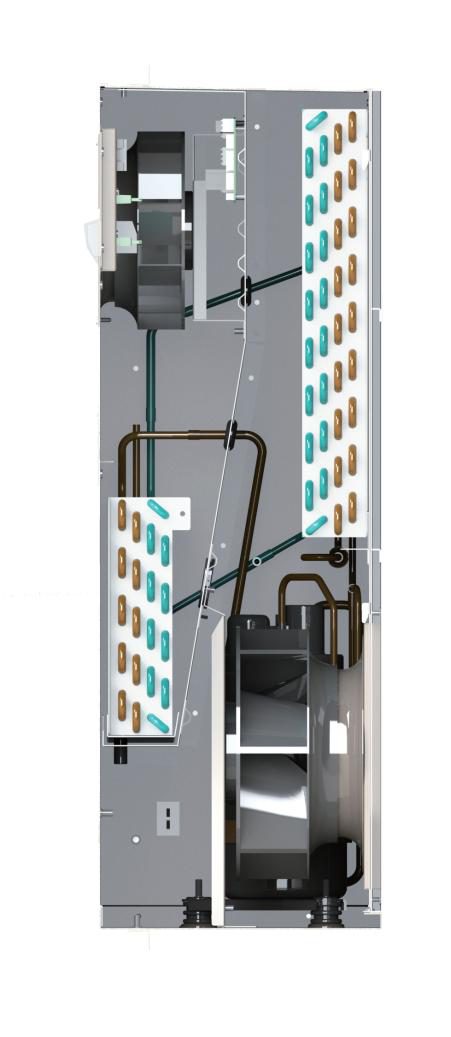

Active cooling paired with passive heat pipe or ventilation — up to 35 % energy saved at night.
IP55 sealed cabinet cooling with no compressor — the lowest-maintenance option in the range.
External service access — install and maintain without opening the cabinet or touching PACK cables.

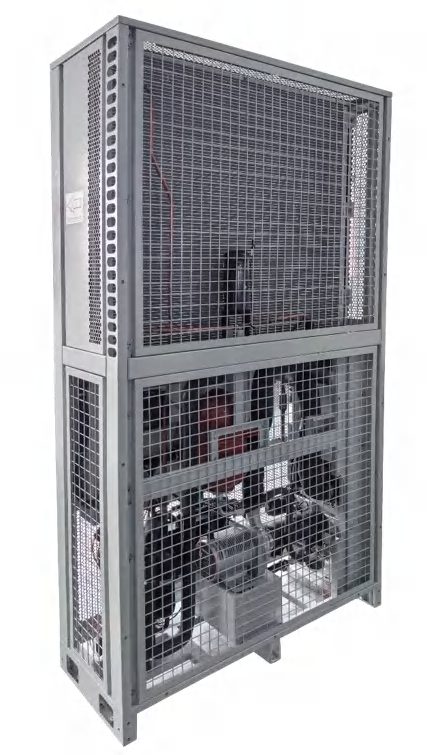

Door-mounted 6–8 kW and floor-standing 30–60 kW liquid chillers with free-cooling and heat-pump options.

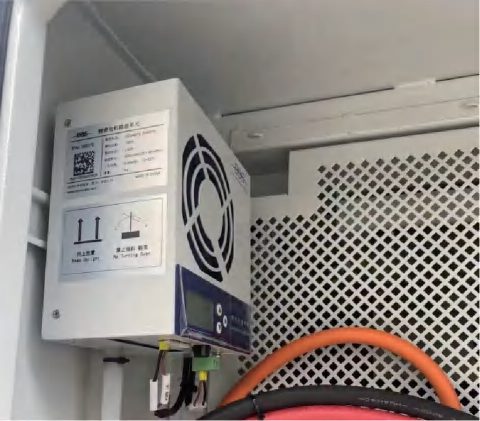

Condensing dehumidification that cuts absolute humidity and removes condensation risk in storage cabinets.
Anti-corrosion electrophoresis or nano coating for salt spray, chemical and food-processing plants.
2–10 °C coolant at ±1.0 °C, distributed to several cooling points from one circulation pump.

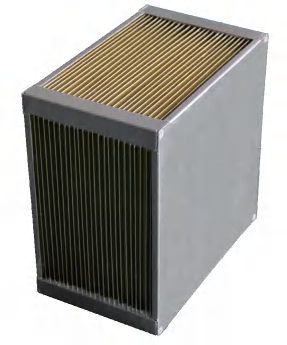

Cross- and counter-flow plate cores to 10,000 m³/h, conforming to European Ecodesign 2016 / 2018.
Evaporates condensate to vapour where drainage piping is impractical, with smart level management.
| P/N | Model No. | Capacity | Supply | Dimensions (mm) | Notes |
|---|
A single plug-and-play chassis carrying pumps, plate exchanger, air-purge and coolant replenishment — active and passive cooling, wet- or dry-cooled, with full protection logic.

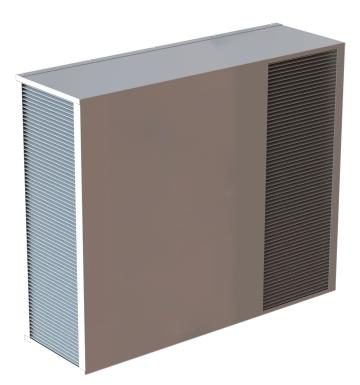

Plate heat exchangers designed for air flows up to 10,000 m³/h (6,000 CFM), achieving higher efficiency conforming to the European Ecodesign 2016 and 2018 standards.
| Model | A (mm) | B (mm) | C (45° mm) | Plate distance (mm) |
|---|
| Model | A (mm) | B (mm) | C (mm) | Plate distance (mm) |
|---|
For further options please contact DBS.

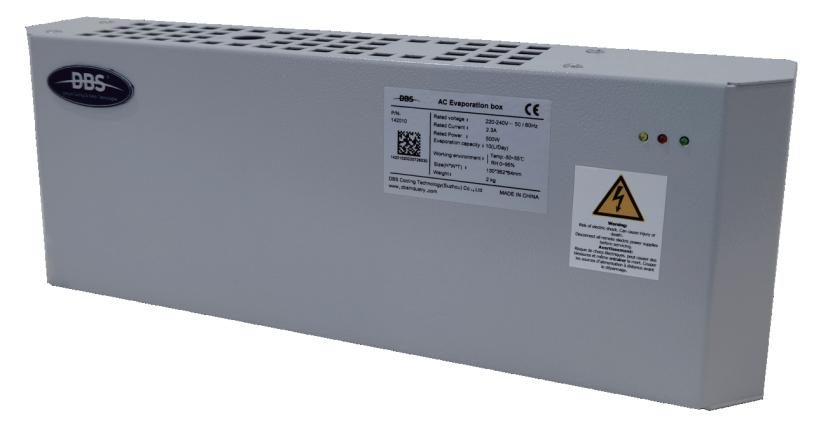

For locations where condensate drainage piping is impractical, the box evaporates condensate directly and releases water vapour into the ambient air.
