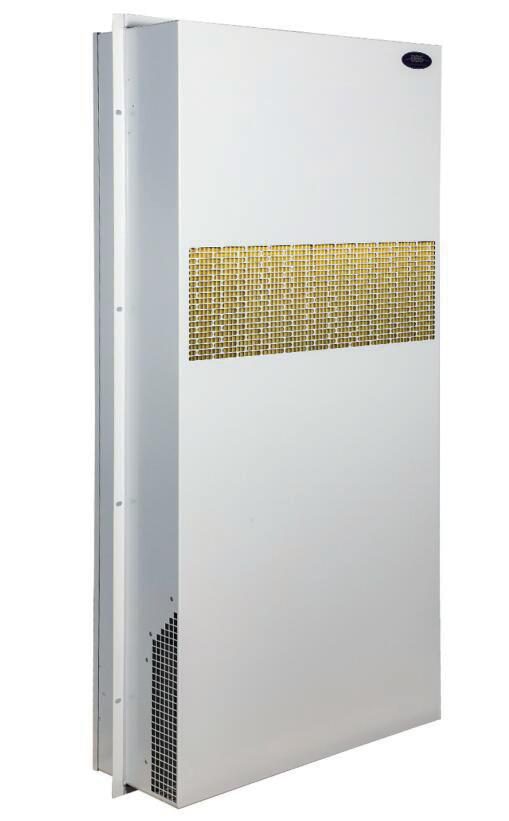

Air-to-Air Heat Exchanger

IP55 sealed cabinet cooling with no compressor — the lowest-maintenance option in the range.

Air-to-Air Heat Exchanger

Key features

Reliable, high-performance cooling at a lower capital and running cost than a compressor.
Keeps the cabinet interior clean, dry and stable at IP55 ingress protection.
Nothing in the cooling path to fail, so maintenance intervals are measured in years.
Thirteen models from 50 to 300 W/K, with UL-listed variants.

Capacity: 50 – 300 W/K
Supply: 230 VAC
Ingress: IP55

Get a quote Download the catalogue

Models

13 models · catalogue page 10

P/N	Model	Capacity	Supply	Dimensions (mm)	Notes
511010	HCZA-050-000-010	50 W/K	230 VAC	618×340×200	—
511020	HCZA-080-000-020	80 W/K	230 VAC	900×400×155	—
511033	HCZA-100-000-033	100 W/K	230 VAC	900×412×200	—
511030	HCZA-120-000-030	120 W/K	230 VAC	900×412×200	—
511031	HCZA-150-000-031	150 W/K	230 VAC	900×412×200	—
511480	HCZA-150-000-480	150 W/K	230 VAC	745×445×275	—
512160	HCYA-150-000-160	150 W/K	230 VAC	1245×518×250	UL
511270	HCZA-180-000-270	180 W/K	230 VAC	900×580×200	—
511040	HCZA-180-000-040	180 W/K	230 VAC	1245×518×251	—
511042	HCZA-200-000-042	200 W/K	230 VAC	1245×518×251	—
511323	HCZA-260-000-323	260 W/K	230 VAC	1400×610×251.5	—
511330	HCZA-300-000-330	300 W/K	230 VAC	1150×600×300	—
512170	HCYA-300-000-170	300 W/K	230 VAC	1400×610×250	UL

Send us the conditions.

Heat load, ambient range, enclosure size, supply and corrosion class. That is enough for a model number, a drawing and a price.

Get a quote All products
