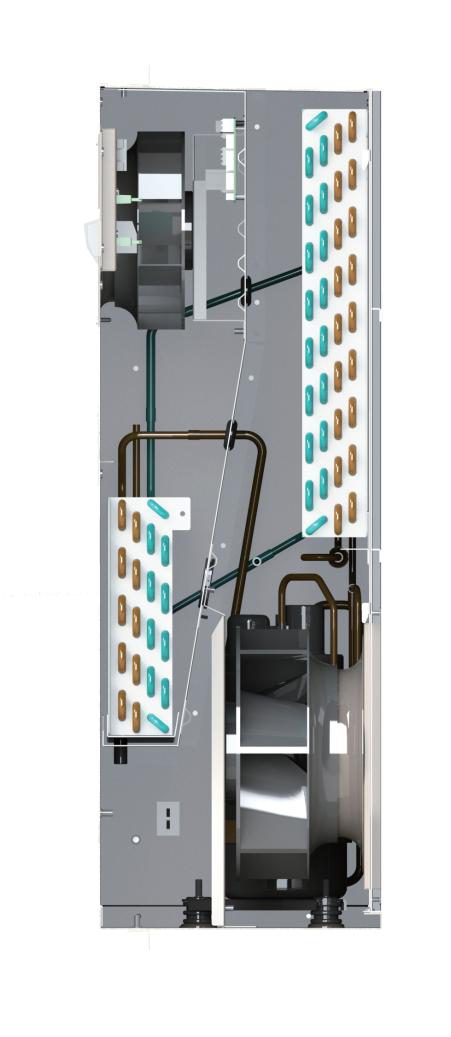

Combo Unit — AC + HEX / Vent

Key features

Active cooling combined with a passive heat exchanger or ventilation module in one housing.
The compressor takes 48 V DC or 230 V AC; the passive side runs on either.
Runs the free-cooling side whenever ambient allows, which takes roughly a third off the annual energy bill.
Emergency DC operation keeps the cabinet cool through a mains failure.

18 models · catalogue page 9

P/N	Model	Capacity	Supply	Dimensions (mm)	Notes
316100	CHUB-006-000-100	600 W + 30 W/K	48 VDC / 230 VAC	546×315×200	AirCon & HEX
311010	CHZB-010-000-010	1000 W + 50 W/K	48 VDC / 230 VAC	793×381×250	AirCon & HEX
316010	CHUB-010-000-010	1000 W + 50 W/K	48 VDC / 230 VAC	793×381×250	AirCon & HEX
316040	CHUB-015-010-040	1500 W + 70 W/K	48 VDC / 230 VAC	745×445×250	AirCon & HEX
311020	CHZB-020-000-020	2000 W + 80 W/K	48 VDC / 230 VAC	1112×412×250	AirCon & HEX
311140	CHZB-020-000-140	2000 W + 80 W/K	48 VDC / 230 VAC	950×500×280	AirCon & HEX
316042	CHUB-020-000-042	2000 W + 80 W/K	48 VDC / 230 VAC	745×445×250	AirCon & HEX
311030	CHZB-030-000-030	3000 W + 120 W/K	48 VDC / 230 VAC	1150×485×300	AirCon & HEX
311160	CHZB-030-000-160	3000 W + 180 W/K	48 VDC / 230 VAC	1350×580×335	AirCon & HEX
316031	CHUB-030-015-031	3000 W + 110 W/K	48 VDC / 230 VAC	1150×485×300	AirCon & HEX
316060	CHUB-030-000-060	3000 W + 120 W/K	48 VDC / 230 VAC	1300×500×250	AirCon & HEX
311150	CHZB-050-000-150	5000 W + 220 W/K	48 VDC / 230 VAC	1500×600×375	AirCon & HEX
321022	CVZB-015-000-022	1500 W	48 VDC / 230 VAC	1000×412×275	AirCon & ventilation
321021	CVZB-020-000-021	2000 W	48 VDC / 230 VAC	1000×412×275	AirCon & ventilation
326021	CVUB-020-000-021	2000 W	48 VDC / 230 VAC	1000×412×275	AirCon & ventilation
326010	CVUB-035-000-010	3500 W	48 VDC / 230 VAC	1350×420×325	AirCon & ventilation
321050	CVZK-040-000-050	4000 W	48 VDC / 230 VAC	1250×585×400	AirCon & ventilation · R513A
326030	CVUB-030-000-030	6000 W	48 VDC / 230 VAC	1500×520×375	AirCon & ventilation
